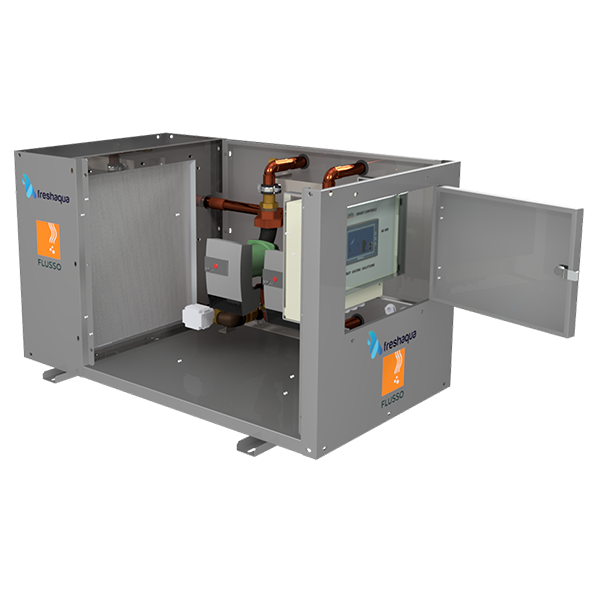

The Flusso Solar Station with Overheating Control is an innovative system that ensures the proper operation of solar collectors in a solar field. It protects the equipment from overheating with the utilization of a dry cooler driven via automation control system, providing the system with remarkable heat rejection capacity.
It is indicated for the conversion of autonomous solar systems into centralized ones with the aim of improving energy efficiency, response and unified control. This station can be used in a wide range of applications from simple domestic to hotel applications, while it is ideally combined with the Flusso Horizontal Storage Tank.
System operation can be fully automated via PLC with real-time display provided via touch screen or computer.
| Casing material | INOX 304 |
| Cooling element material | Copper with aluminum fins |
| Cooling element welding type | Automatic circular welding |
| Cooling element protection | Anti-scale protection |
| Nominal operating pressure | 3 bar |
| Maximum operating pressure | 6 bar |
| Nominal operating temperature | 90oC |
| Maximum operating temperature | 100oC |
| Solar field pump | Wilo/Grundfos PWM |
| Recirculation pump | Optional |
| Fan | 230V |
| Three-way valve for overheating control | 24V |
| Automation control system | Control panel THALES AK400 with 4.3” touch screen |
| MODEL | FLUSSO SOLAR STATION SC 12.1 | FLUSSO SOLAR STATION SC 12.2 | FLUSSO SOLAR STATION SC 12.3 |
| Flow Rate (lt/min) | 16 | 33 | 66 |
| Flow Rate (m3/h) | 1 | 2 | 4 |
| Nominal heat rejection capacity (kW)* | 4 | 7 | 12 |
| Fan diameter | Φ300 | Φ300 | Φ350 |
| Fan flow rate (m3/h) | 1000 | 1500 | 2000 |
| Connections | 1΄΄ | 1΄΄ | 1 1/4΄΄ |
| Length (mm) | 960 | 960 | 960 |
| Width (mm) | 550 | 550 | 550 |
| Height (mm) | 570 | 570 | 570 |
| Weight (kg) | 35 | 40 | 45 |
| *(Ambient temperature : 42 oC, Collectors’ temperatures: 75-70 oC) | |||
