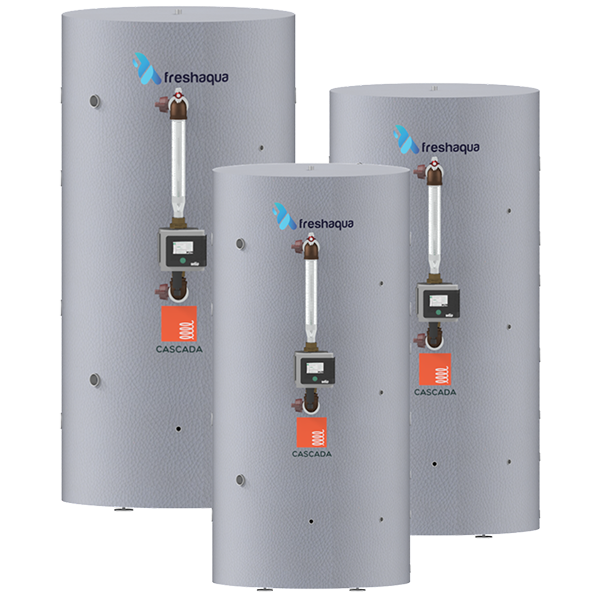

The Cascada Fresh Water Vertical Buffer Tank (Counter Flow) is the new compact solution for FRESH WATER production (In-line water heating) and heating.
It can be thermally supplied by many heat sources such as Solar Field, Heat Pump, Boiler and Heating Element.
System operation can be fully automated via PLC with real-time display provided via touch screen or computer.
| Buffer tank material | INOX 304 |
| Buffer tank insulation | Polyurethane foam (thickness: 90-100 mm, density: 45 kg/m3) |
| Outer casing | PVC leather |
| Buffer tank welding type | Automatic circular welding |
| Buffer tank protection | Inactivation coating |
| Buffer tank nominal operating pressure | 3 bar |
| Buffer tank maximum operating pressure | 4 bar |
| Buffer tank test pressure | 8 bar |
| Energy classification | B |
| Fresh water heat exchanger type | Counter flow, Corrugated |
| Fresh water heat exchanger material | INOX 316L |
| Fresh water heat exchanger welding type | Automatic circular welding |
| Fresh water heat exchanger protection | Inactivation coating |
| Secondary circuit nominal operating pressure | 6 bar |
| Secondary circuit maximum operating pressure | 12 bar |
| Primary circuit nominal operating pressure | 3 bar |
| Primary circuit maximum operating pressure | 6 bar |
| Nominal operating temperature | 95oC |
| Heat transfer pump | Wilo 0-10V / Grundfos PWM |
| Solar field heat exchanger | Immersed, corrugated |
| Solar field heat exchanger material | INOX 304 |
| Solar field heat exchanger nominal operating pressure | 3 bar |
| Solar field heat exchanger maximum operating pressure | 6 bar |
| Automation control system (extra) | Control panel THALES AK400 with 4.3” touch screen |
With solar heat exchanger
| MODEL | CASCADA BF VER-FW-CF-S 300/10 | CASCADA BF VER-FW-CF-S 300/15 | CASCADA BF VER-FW-CF-S 600/15 | CASCADA BF VER-FW-CF-S 600/20 | CASCADA BF VER-FW-CF-S 1000/30 | CASCADA BF VER-FW-CF-S 1000/45 |
| Nominal Flow Rate (lt/min) | 17 | 25 | 25 | 33 | 50 | 75 |
| Nominal Flow Rate (m3/h) | 1.0 | 1.5 | 1.5 | 2.0 | 3.0 | 4.5 |
| Nominal Useful Power (kW)* | 35 | 53 | 52 | 70 | 105 | 157 |
| Tank Capacity (lt) | 300 | 300 | 600 | 600 | 1000 | 1000 |
| Solar Heat Exchanger Area (m2) | 1.0 | 1.0 | 1.4 | 1.4 | 2.0 | 2.0 |
| Height (mm) | 1680 | 1680 | 2020 | 2020 | 2105 | 2105 |
| Diameter (mm) | 690 | 690 | 810 | 810 | 1030 | 1030 |
| Weight (kg) | 82 | 82 | 112 | 112 | 170 | 170 |
| *(Primary circuit temperatures : 60-55oC, Secondary circuit temperatures: 20-50oC) | ||||||
Without solar heat exchanger
| MODEL | CASCADA BF VER-FW-CF 300/10 | CASCADA BF VER-FW-CF 300/15 | CASCADA BF VER-FW-CF 600/15 | CASCADA BF VER-FW-CF 600/20 | CASCADA BF VER-FW-CF 1000/30 | CASCADA BF VER-FW-CF 1000/45 |
| Nominal Flow Rate (lt/min) | 17 | 25 | 25 | 33 | 50 | 75 |
| Nominal Flow Rate (m3/h) | 1.0 | 1.5 | 1.5 | 2.0 | 3.0 | 4.5 |
| Nominal Useful Power (kW)* | 35 | 53 | 52 | 70 | 105 | 157 |
| Tank Capacity (lt) | 300 | 300 | 600 | 600 | 1000 | 1000 |
| Height (mm) | 1680 | 1680 | 2020 | 2020 | 2105 | 2105 |
| Diameter (mm) | 690 | 690 | 810 | 810 | 1030 | 1030 |
| Weight (kg) | 78 | 78 | 107 | 107 | 165 | 165 |
| *(Primary circuit temperatures : 60-55oC, Secondary circuit temperatures: 20-50oC) | ||||||
